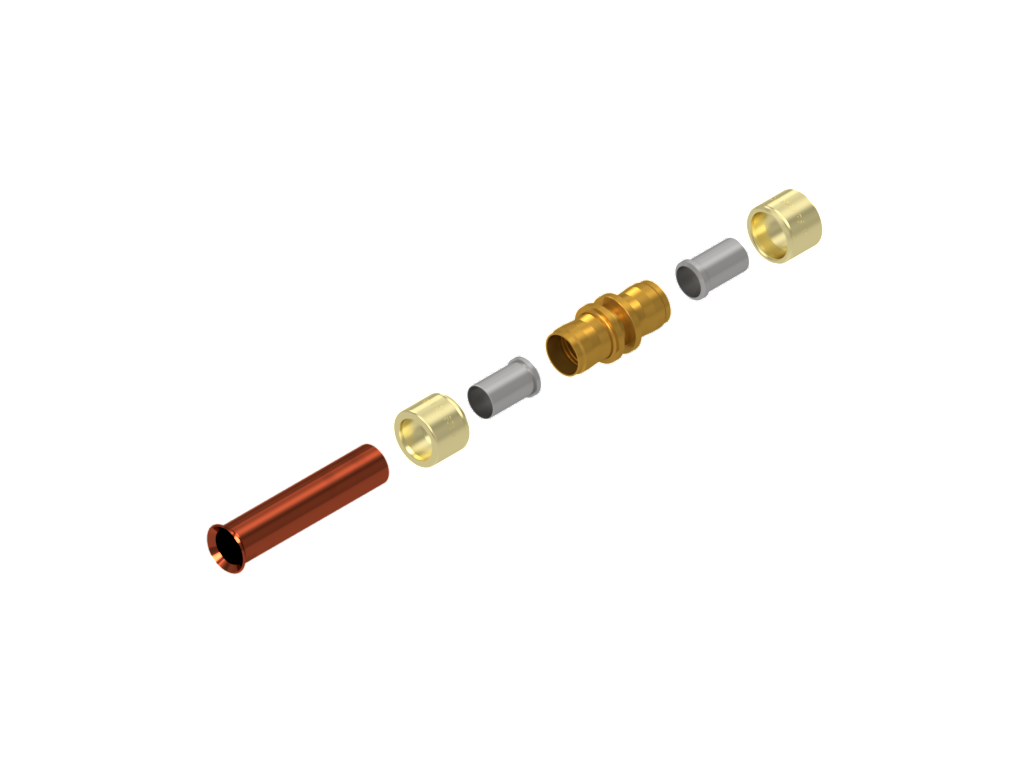

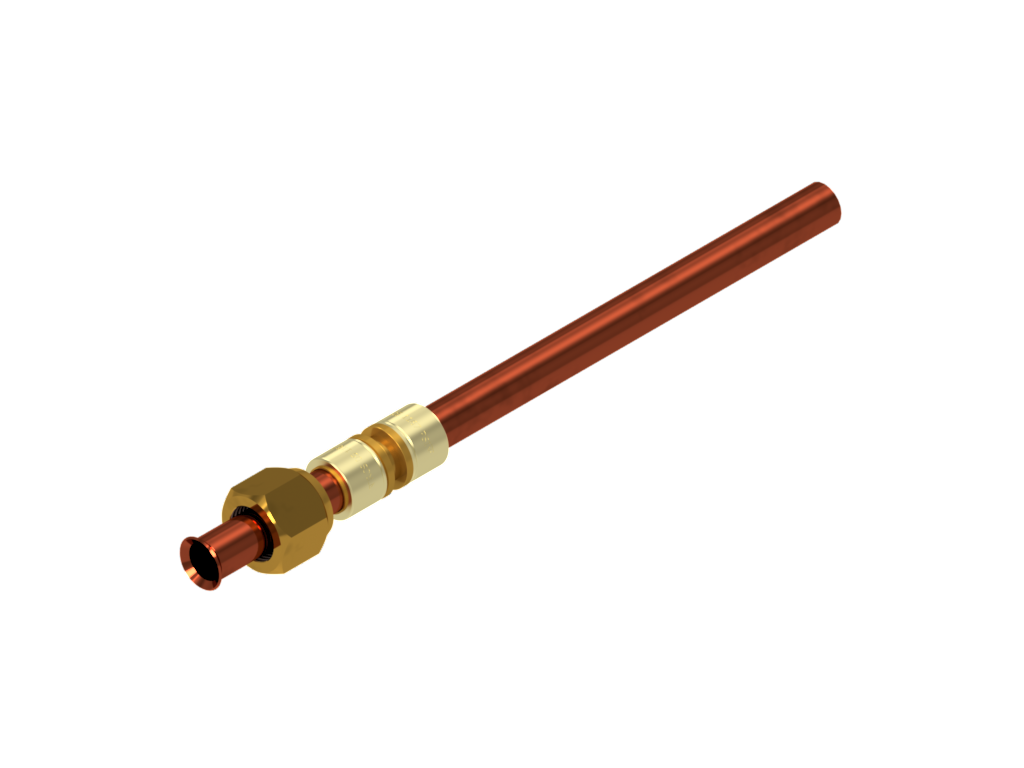

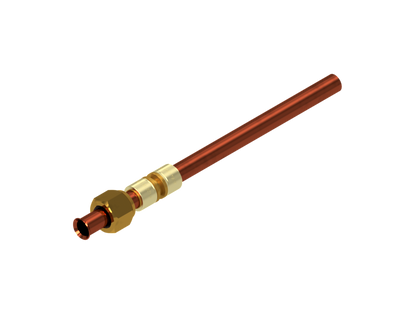

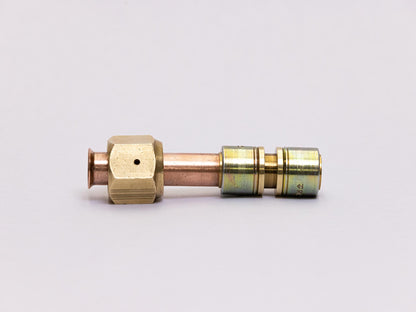

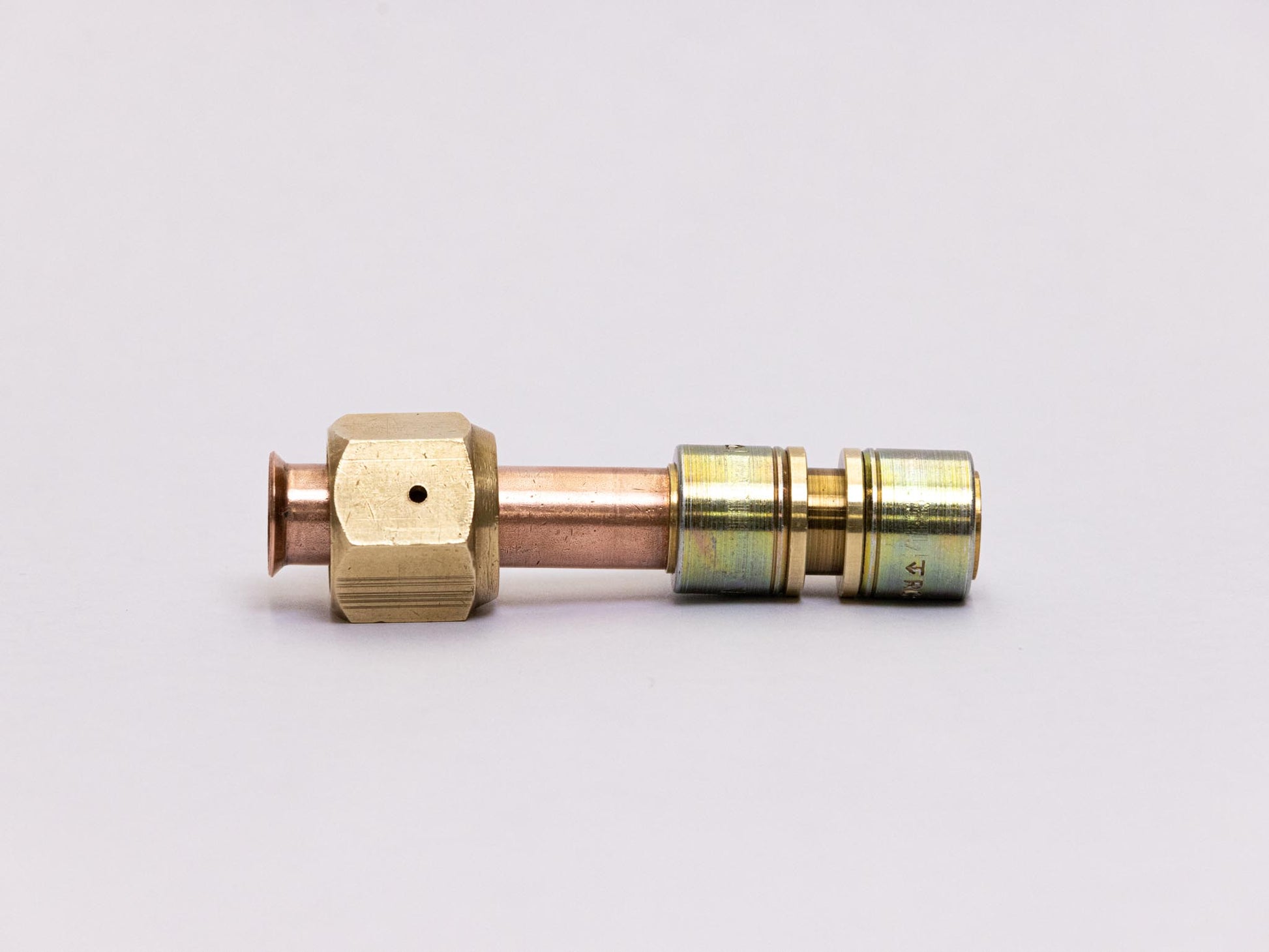

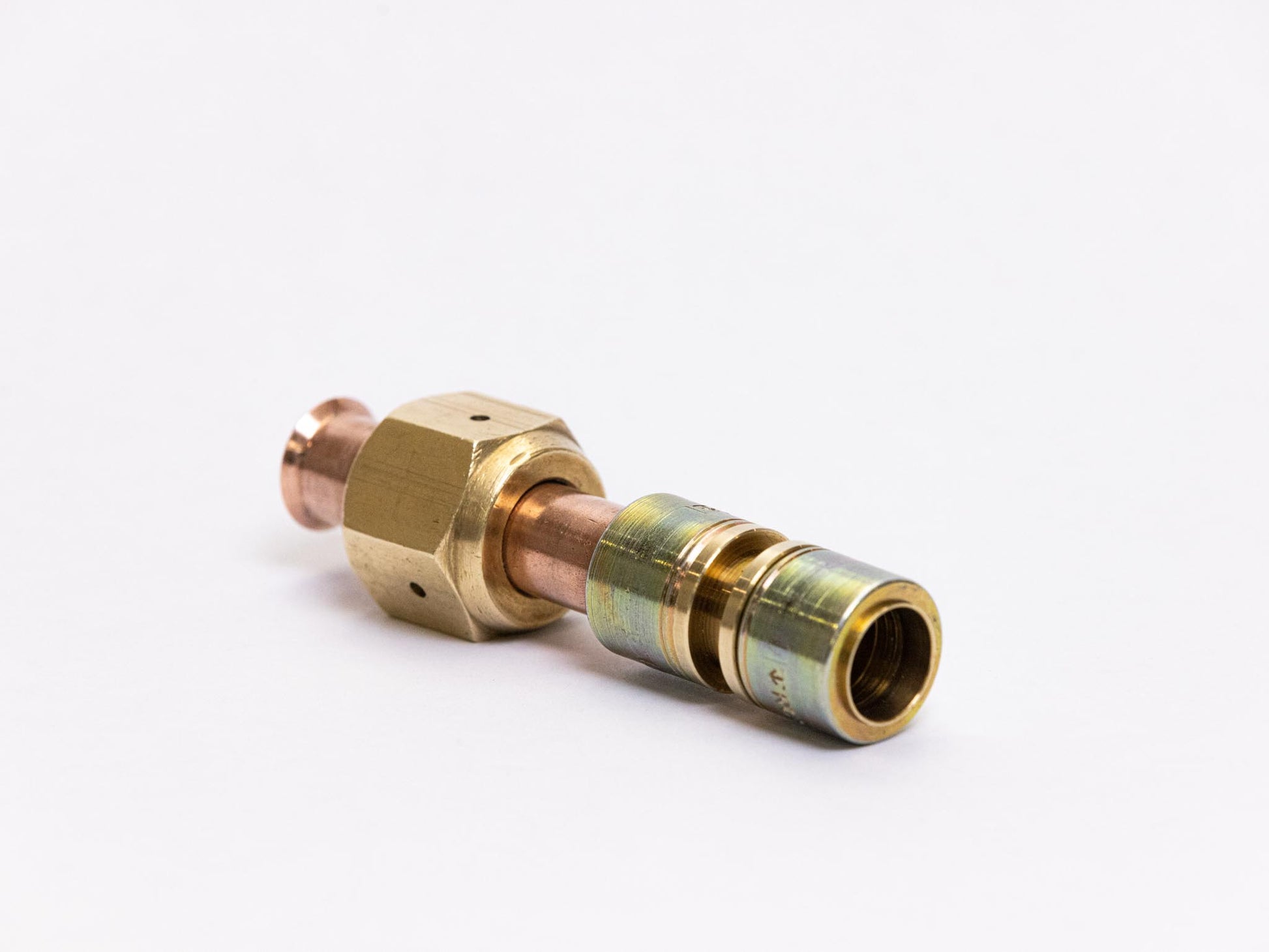

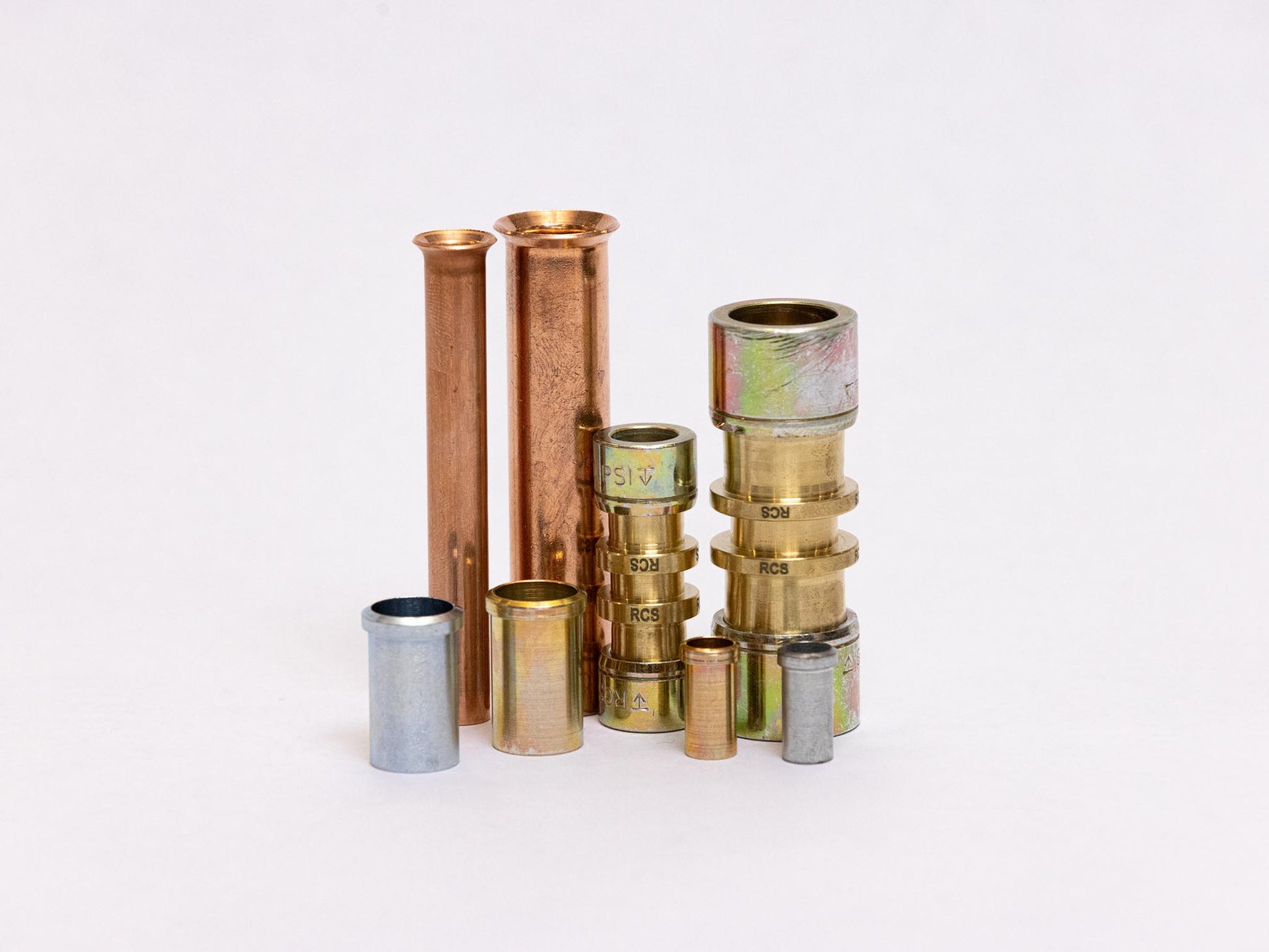

Flare Kit

These kits connect copper refrigeration tubing to the mechanical equipment by means of a permanent mechanical seal to a JIS B 8607 Class 2 Flare Stub. To ensure equipment compatibility, this kit is designed to utilize the factory Flare Nut provided with the original equipment.

The fitting is ETL listed for U.S. and Canada with an allowable working pressure of 1500 PSIG per UL-207. The copper flare stub allowable working pressure is equal to the annealed copper tube rating by tube size per ASME B31.5. The fitting is intended for use with C12200 Type L copper tube conforming to dimensions of ASTM B280. All tempers of copper tube may be used (O60, H55, H58). Fitting may also be used with C19400 copper alloy.

APPLICATION

High Pressure HVAC/R

MAX RATED PRESSURE

600 psi

COMPATIBLE TUBING

Seamless Copper Tubing, Drawn H58, Light Drawn H55, or Annealed O60 made to ASTM B280 and ASTM B75 Standard.

AGENCY APPROVAL

ETL Listed 5011885. Conforms to UL 207 STD. Certified to CSA STD C22.2#140.3

REFRIGERANTS

All CFC, HCFC, HFC, HFO, and class A2L refrigerants and refrigeration oils.

The product is suitable for use with R744 (CO2) when used within the design pressure rating.

The product is not suitable for use with ammonia, methyl chloride, hazardous or flammable refrigerants from Group 2 or 3 per ASHRAE 15.

INSTALLATION

The flare nut is NOT included with the kit. The factory flare nut must be used and installed prior to final installation of the flare coupling.

The fittings must be installed per RCS installation instructions by skilled installers, trained specifically in the application and installation of RCS fittings.

Contact RCS, Inc. for alternative tube support inserts when installing fittings on annealed copper coils or pre-insulated line sets with tube wall thicknesses less than specified by ASTM B280.
