Reducers
Reducers

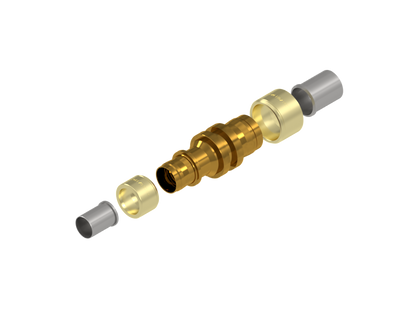

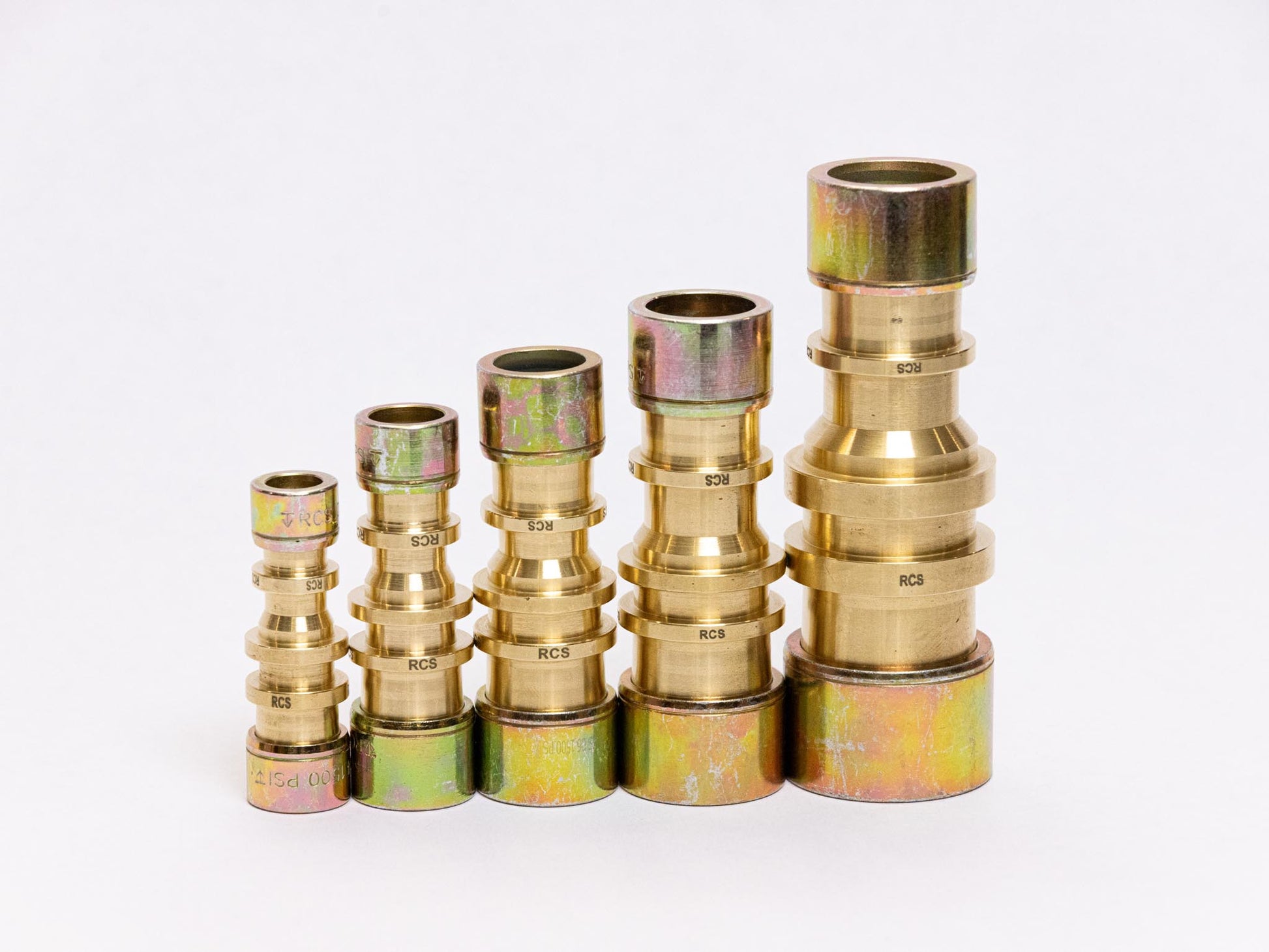

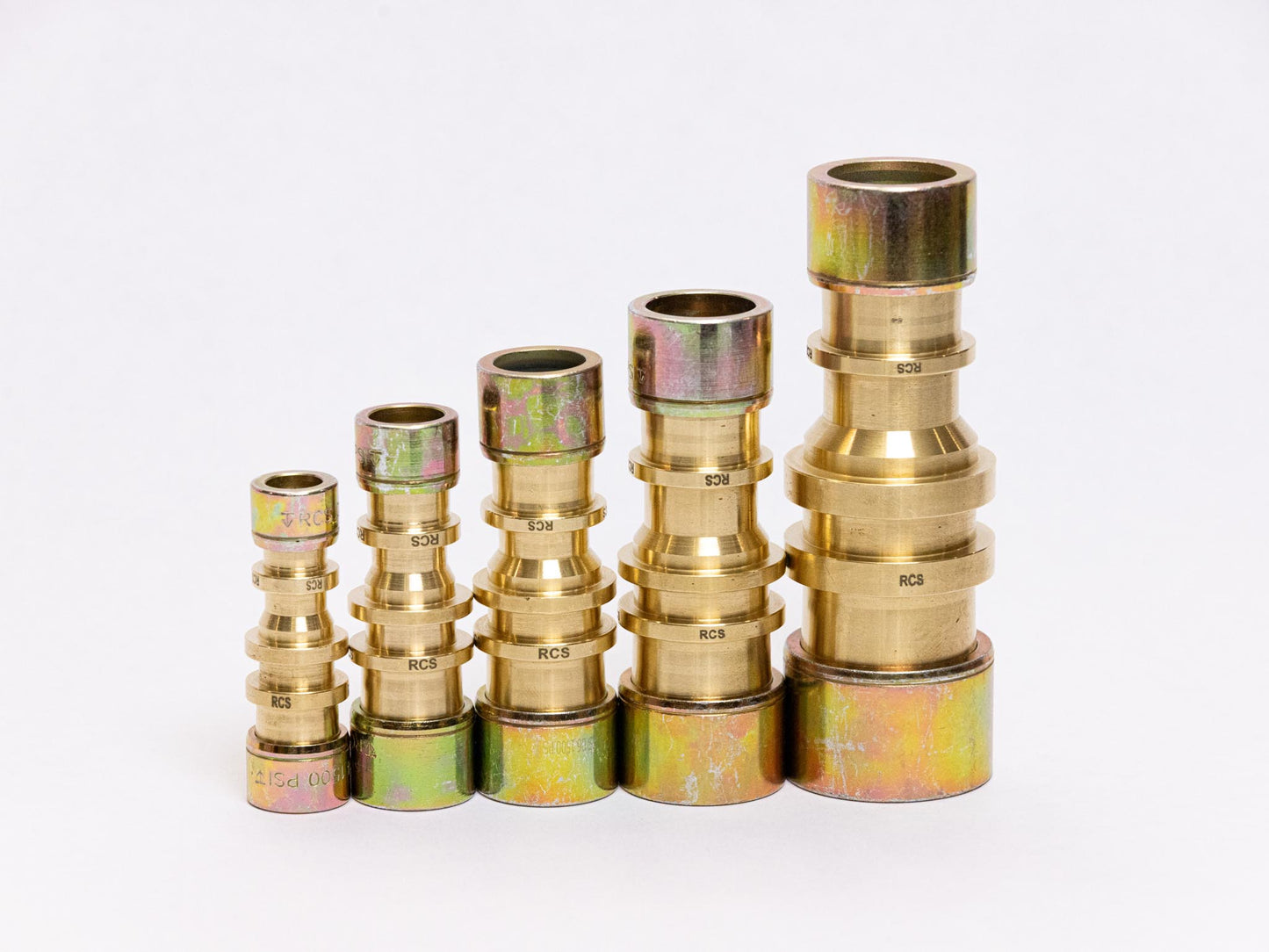

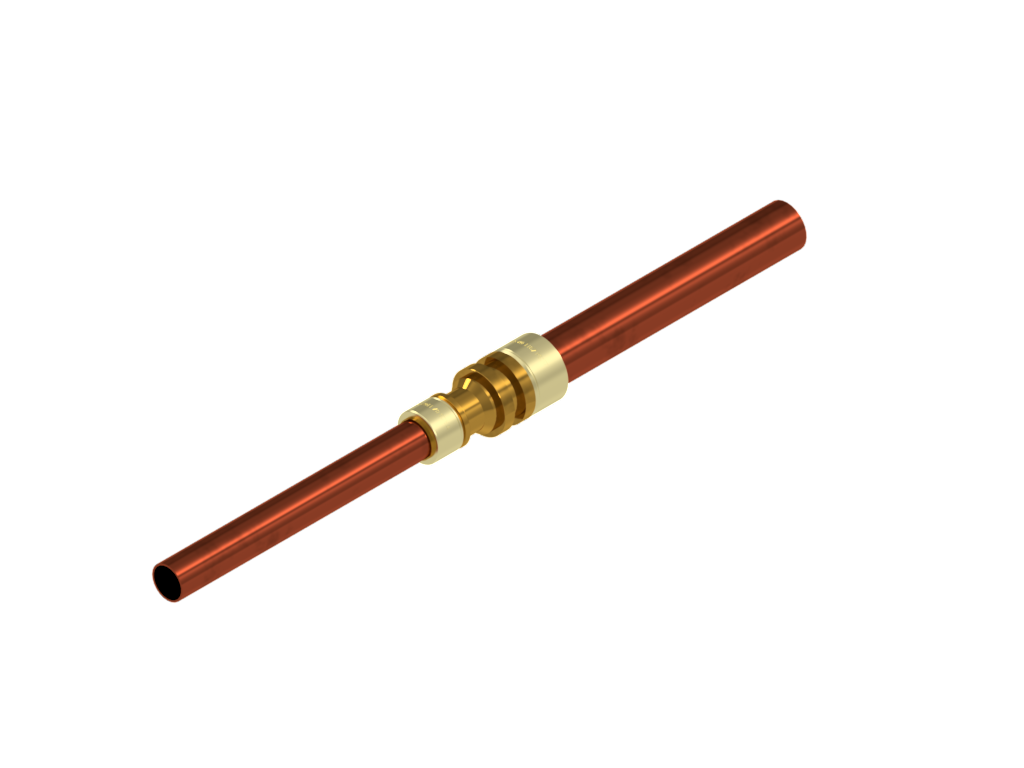

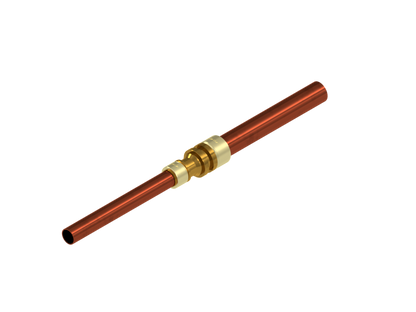

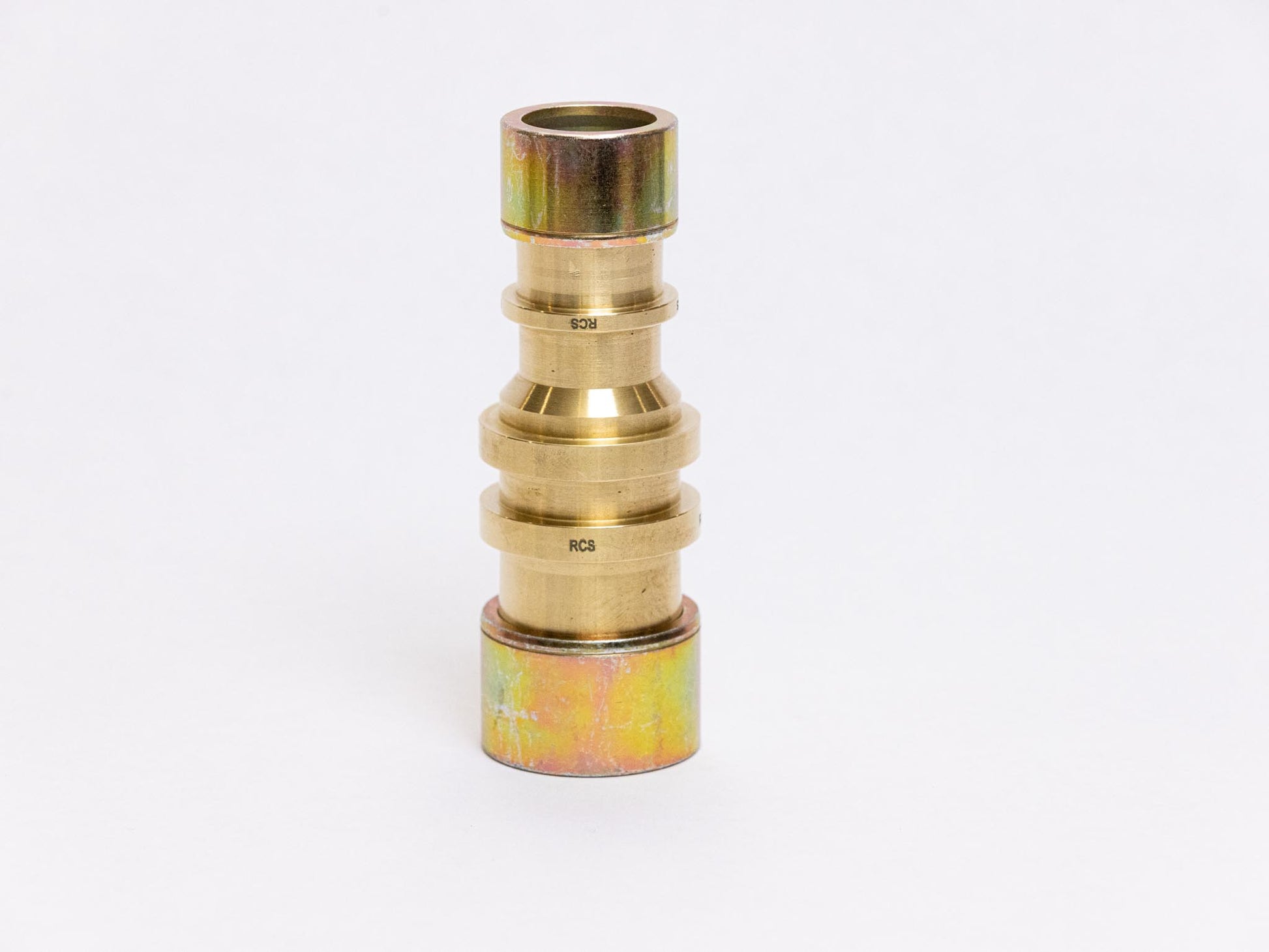

The reducer joins unequal size copper refrigeration tubing by means of a permanent mechanical seal.
The reducer is ETL listed for U.S. and Canada with an allowable working pressure of 1500 PSIG per UL-207. The reducer is intended for use with C12200 Type L copper tube conforming to dimensions of ASTM B280. All tempers of copper tube may be used (O60, H55, H58). Coupling may also be used with C19400 copper alloy.
APPLICATION
High Pressure HVAC/R
MAX RATED PRESSURE
1500 psi (100 bar)
COMPATIBLE TUBING
Seamless Copper Tubing, Drawn H58, Light Drawn H55, or Annealed O60 made to ASTM B280 and ASTM B75 Standard.
AGENCY APPROVAL
ETL Listed 5011885. Conforms to UL 207 STD. Certified to CSA STD C22.2#140.3
REFRIGERANTS
All CFC, HCFC, HFC, HFO, and class A2L refrigerants and refrigeration oils.
The product is suitable for use with R744 (CO2) when used within the design pressure rating.
The product is not suitable for use with ammonia, methyl chloride, hazardous or flammable refrigerants from Group 2 or 3 per ASHRAE 15.
INSTALLATION
The fittings must be installed per RCS installation instructions by skilled installers, trained specifically in the application and installation of RCS fittings.
Contact RCS, Inc. for alternative tube support inserts when installing fittings on annealed copper coils or pre-insulated line sets with tube wall thicknesses less than specified by ASTM B280.
Legend: D = Outer Diameter, L = Total Length, T = Takeoff length.
| TUBE SIZES INCHES | PART NUMBER | L INCHES (MM) | D INCHES (MM) | T (TAKEOFF) INCHES (MM) |
|---|---|---|---|---|
| 3/8" to 1/4" | BRED-0302 | 1.36 (34.5) | 0.63 (16.0) | 0.49 (12.4) |
| 1/2" to 3/8" | BRED-0403 | 1.92 (48.8) | 0.75 (19.0) | 0.98 (24.9) |
| 5/8" to 1/2" | BRED-0504 | 2.23 (56.7) | 0.91 (23.1) | 1.08 (27.6) |
| 3/4" to 1/2" | BRED-0604 | 2.44 (62.0) | 1.04 (26.4) | 1.17 (29.7) |
| 3/4" to 5/8" | BRED-0605 | 2.51 (63.8) | 1.04 (26.4) | 1.10 (28.0) |
| 7/8" to 5/8" | BRED-0705 | 2.75 (70.0) | 1.22 (31.0) | 1.27 (32.2) |
| 7/8" to 3/4" | BRED-0706 | 2.87 (73.0) | 1.22 (31.0) | 1.26 (32.0) |
| 1-1/8" to 3/4" | BRED-0906 | 3.70 (93.6) | 1.54 (39.1) | 1.92 (48.7) |
| 1-1/8" to 7/8" | BRED-0907 | 3.74 (95.1) | 1.54 (39.1) | 1.88 (47.9) |
| 1-3/8" to 1-1/8" | BRED-1109 | 4.24 (107.6) | 1.81 (96.3) | 2.11 (53.7) |
