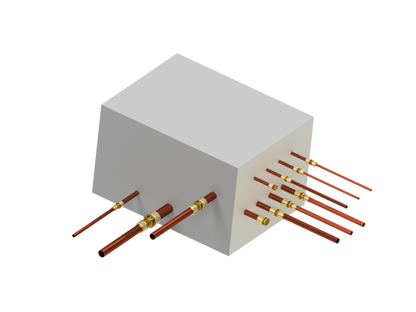

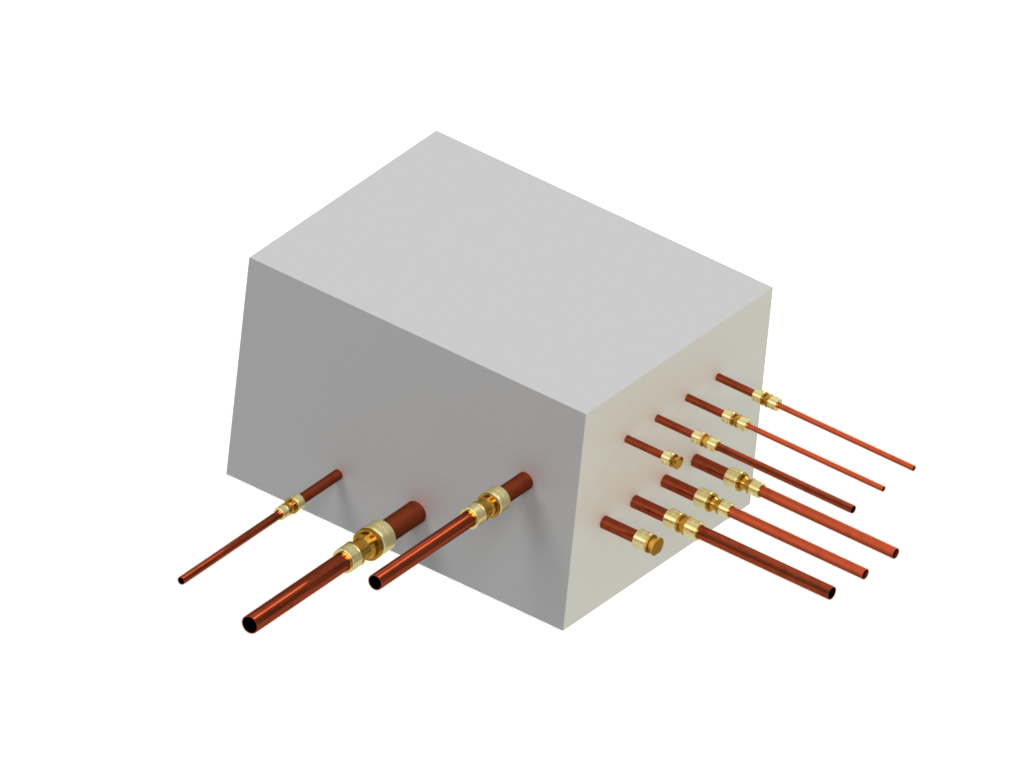

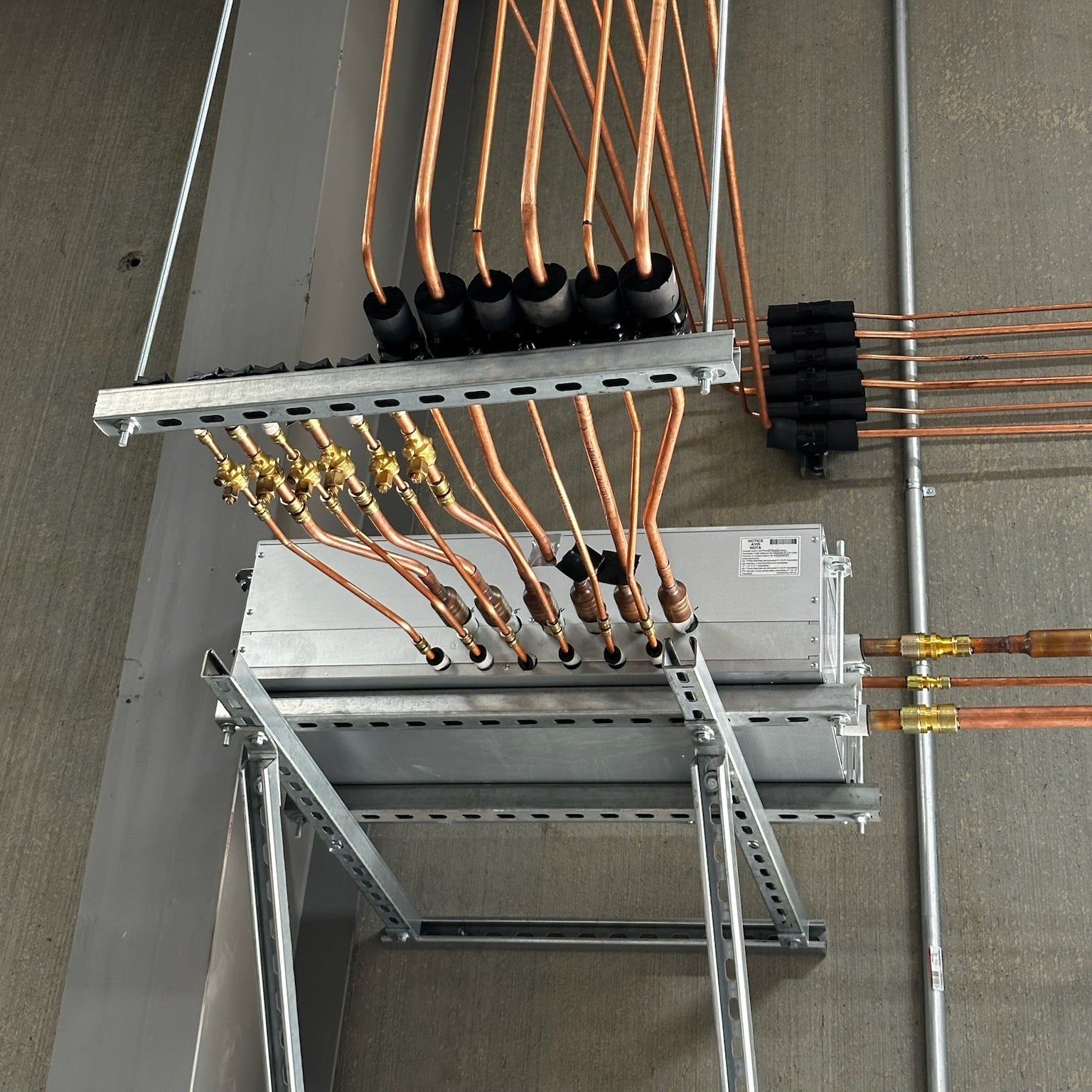

Branch Selector Box Kit

Branch Selector Box Kit

These kits provide the necessary couplings, reducers, and/or caps to connect VRF Branch Selector Boxes to outdoor unit piping and indoor unit piping. Each kit is custom built to match the project system selection lay-out as provided by the customer. The couplings, reducers, flare tube kits, or closed pipe caps are shipped loose for field installation on to the selector box.

Specialty tube support adaptor inserts may be supplied with the kit for proper fit onto certain selector box connecting pipe.

Contact RCS customer service team for more details on tube inserts for your selected equipment. Refer to RCS installation instructions for details prior to installing these fittings.

APPLICATION

High Pressure HVAC/R

MAX RATED PRESSURE

1167 psi (80 bar)

COMPATIBLE TUBING

Seamless Copper Tubing, Drawn H58, Light Drawn H55, or Annealed O60 made to ASTM B280 and ASTM B75 Standard.

AGENCY APPROVED

ETL Listed 5011885. Conforms to UL 207 STD. Certified to CSA STD C22.2#140.3

REFRIGERANTS

All CFC, HCFC, HFC, HFO, and class A2L refrigerants and refrigeration oils.

The product is suitable for use with R744 (CO2) when used within the design pressure rating.

The product is not suitable for use with ammonia, methyl chloride, hazardous or flammable refrigerants from Group 2 or 3 per ASHRAE 15.

INSTALLATION

The fittings must be installed per RCS installation instructions by skilled installers, trained specifically in the application and installation of RCS fittings.

Contact RCS, Inc. for alternative tube support inserts when installing fittings on annealed copper coils or pre-insulated line sets with tube wall thicknesses less than specified by ASTM B280. Do not use on annealed copper sizes larger than 5/8” O.D.

WARNING

All equipment manufacturers’ installation restrictions must be strictly followed. The use of RCS flame-free mechanically attached fittings does not relief the installer from following the equipment manufacturers installation requirements.

Except for factory male flare ends, all factory swaged-ends must be cut off the Selector Box to provide for actual line size in order to install RCS flame-free mechanically attached fittings.

A minimum of 3 ⅛ inches of straight tube clearance from the selector box bulkhead and 1 ⅝ inch clearance between adjacent tubes are required to engage the press tool.

View full details
SINGLE PORT MULTI-PORT -------->> -------->>
SBXXX01P36 SBXXX02P SBXXX08P
SBXXX01P48 SBXXX03P SBXXX10P
SBXXX01P60 SBXXX04P SBXXX12P
SBXXX01P96 SBXXX06P

Installation

The fittings are for professional use only and must be installed per RCS instructions by skilled, trained, and qualified refrigerant piping system technicians.
