Digital Tube Bender 5/8" to 1-3/8" with Tripod

CHARACTERISTICS

Angle Capacity: 190⁰1.7kw / 2.3 HP, 120VAC / 1 phase
Dimensions: 25”L x 10”W x 7.5”D
Net Weight: 31 lb.Digital Readout Display 0⁰-180⁰ for repetitive bends
Automatic stop at predetermined angle. Set with thumb screw. Displayed on digital readout
High reduction gear box for increased torque
Low friction guide shoe
Forward and Reverse switch
Bends made at 3.5 RPM with soft start

TUBING SIZE RANGE

5/8” OD, Bend Radius = 2.5”
3/4” OD, Bend Radius = 3.0”
7/8” OD, Bend Radius = 3.5”
1-1/8” OD, Bend Radius = 4.5”
1-3/8” OD, Bend Radius = 4.8”

TOOL KIT COMPONENTS

• 1 ea. DB32 Electric Tubing Bender
• 1 ea. Tripod Mounting Stand
• 1 ea. Back Former Mounting Post

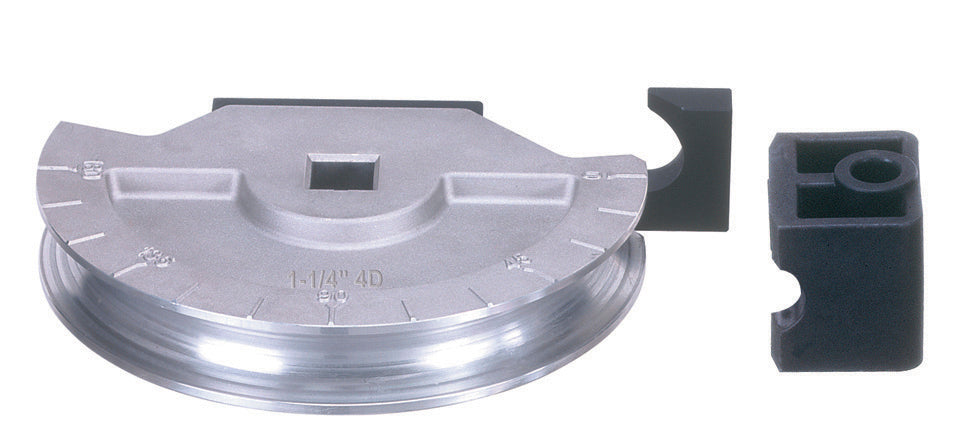

• Bending Formers and Back Formers for:
  • 5/8” OD ACR (Bendable Quality)
  • 3/4” OD ACR (Bendable Quality)
  • 7/8” OD ACR (Bendable Quality)
  • 1-1/8” OD ACR (Bendable Quality)
  • 1-3/8” OD ACR (Bendable Quality)
• 1 ea. Carrying Case for Bender and Formers

LIMITATIONS

Use ONLY with O60 annealed or H55 Light Drawn ACR copper tubing with OD as listed above.

DO NOT BEND H58 GENERAL PURPOSE DRAWN.

DO NOT unbend a previous bend. This will cause tube failure.

The tool operates at tremendous forces and can cause severe damage or injury.

For use by professionally trained technician only.
