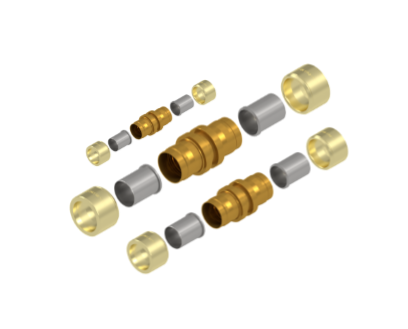

Heat Recovery ODU Connection Kits

These kits provide the necessary couplings and reducers to connect VRF outdoor condensing unit to the refrigerant piping system. Each kit is custom built to match the project system selection lay-out as provided by the customer. The couplings, reducers, and silicone cold shrink sleeves are shipped loose for field installation on to the condensing unit connecting piping. Adequate tool clearance must be confirmed prior to installation. Accessory tubing and Multi-Frame Y-Branch pipe kits are NOT included and must be installed separately.

All RCS fittings installed outdoors, at the outdoor units, on insulated piping located outdoors, in wet/humid environments, or wherever the thermal insulation cannot be installed per the insulation manufacturer’s instructions, must be protected from possible corrosion via the use of cold shrink, heat shrink, or other suitable impervious protective cover.

Specialty tube support inserts may be supplied with the kit for proper fit onto certain condensing unit connecting pipe.Refer to RCS installation instructions for details prior to installing these fittings.

APPLICATION

High Pressure HVAC/R

MAX RATED PRESSURE

1167 psi (80 bar)

COMPATIBLE TUBING

Seamless Copper Tubing, Drawn H58, Light Drawn H55, or Annealed O60 made to ASTM B280 and ASTM B75 Standard.

AGENCY APPROVAL

ETL Listed 5011885. Conforms to UL 207 STD. Certified to CSA STD C22.2#140.3

REFRIGERANTS

All CFC, HCFC, HFC, HFO, and class A2L refrigerants and refrigeration oils.

The product is suitable for use with R744 (CO2) when used within the design pressure rating.

The product is not suitable for use with ammonia, methyl chloride, hazardous or flammable refrigerants from Group 2 or 3 per ASHRAE 15.

INSTALLATION

The fittings must be installed per RCS installation instructions by skilled installers, trained specifically in the application and installation of RCS fittings.

Contact RCS, Inc. for alternative tube support inserts when installing fittings on annealed copper coils or pre-insulated line sets with tube wall thicknesses less than specified by ASTM B280. Do not use on annealed copper sizes larger than 5/8” O.D.
