Indoor Unit Connection Kits

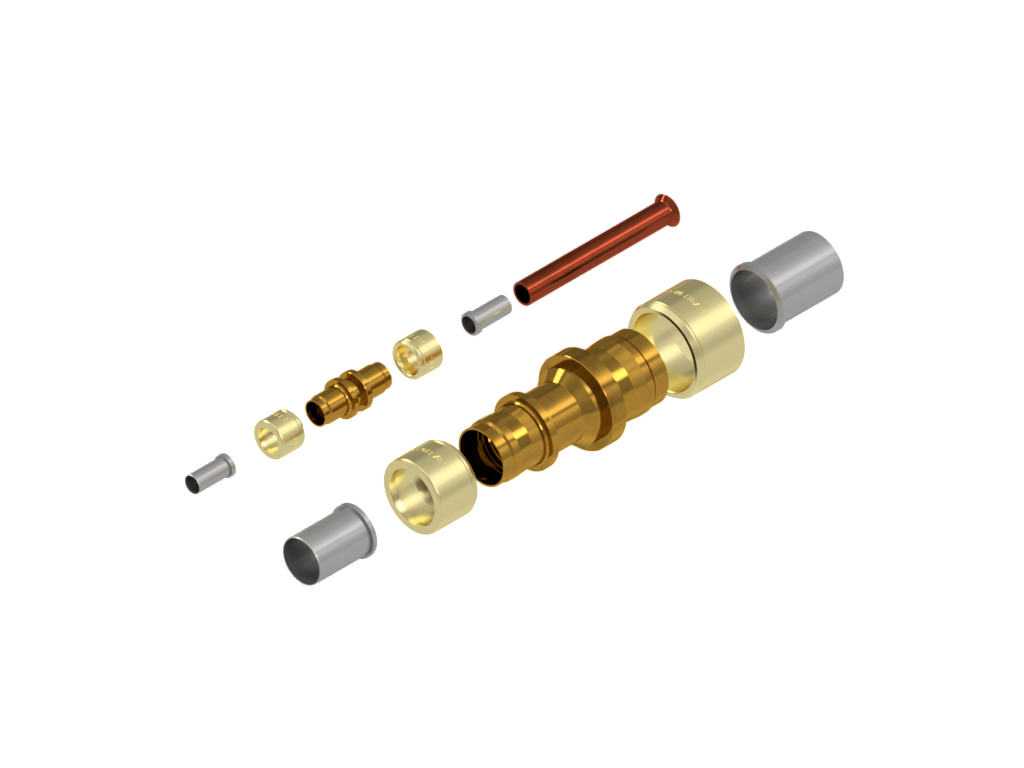

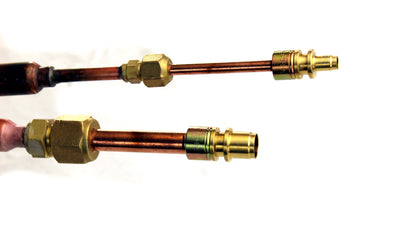

These fan coil connection kits are pre-configured combination packages of flare tube kits, couplings, or reducers to connect the liquid and suction lines of fan coils with flare connections and large horizontal outside air units to the piping system.Toensure equipment compatibility, the pre-flared kits are designed to utilize the factory Flare Nut provided with the original equipment.

The copper flare tube provided with the fitting is annealed (O60) C12200 copper tube and conforms to JIS B 8607 Class 2 dimensional requirements. The copper flared tube allowable working pressure is equal to the annealed copper tube rating by tube size per ASME B31.5.

The Coupling is ETL listed for U.S. and Canada with an allowable working pressure of 1167 PSIG per UL-207. The fitting is intended for use with C12200 Type L copper tube conforming to ASTM B280. All tempers of copper tube may be used(O60, H55, H58). The fitting may also be connected to C19400 copper alloy.

Specialty tube support inserts may be supplied with the kit for proper fit onto certain fan coil connecting tubing.Refer to RCS installation instructions for details prior to installing these fittings.

APPLICATION

High Pressure HVAC/R

MAX RATED PRESSURE

600 psi

COMPATIBLE TUBING

Seamless Copper Tubing, Drawn H58, Light Drawn H55, or Annealed O60 made to ASTM B280 and ASTM B75 Standard.

AGENCY APPROVAL

ETL Listed 5011885. Conforms to UL 207 STD. Certified to CSA STD C22.2#140.3

REFRIGERANTS

All CFC, HCFC, HFC, HFO, and class A2L refrigerants and refrigeration oils.

The product is suitable for use with R744 (CO2) when used within the design pressure rating.

The product is not suitable for use with ammonia, methyl chloride, hazardous or flammable refrigerants from Group 2 or 3 per ASHRAE 15.

INSTALLATION

The fittings must be installed per RCS installation instructions by skilled installers, trained specifically in the application and installation of RCS fittings.

Contact RCS, Inc. for alternative tube support inserts when installing fittings on annealed copper coils or pre-insulated line sets with tube wall thicknesses less than specified by ASTM B280. Do not use on annealed copper sizes larger than 5/8” O.D.
